88R EQ

Bring the Definitive Sound of the 88R Console to Your Studio

The 88R EQ carries the same circuitry as the flagship 88R console, bringing the sound trusted by the world’s premier recording facilities. With four bands of musical precision and eight channels of unmistakable EQ in a compact 2U unit, the 88R EQ provides ultimate analogue sound quality.

The 88R EQ brings the sound of the definitive 88R console to your studio. Trusted by the world’s most iconic recording facilities, the 88R is renowned for its sonic perfection and performance.

The dedicated Neve Elements App gives you complete digital control of the 88R EQ when you want to work separately from the Digital Audio Workstation. Nothing about the sound is emulated – you are breaking out of the box into 88R analogue circuitry.

Control the 88R EQ directly from your Digital Audio Workstation via the dedicated Element Control Plugin, with every setting totally recallable, offering instant reset of all parameters – keeping you in the sweet spot whilst making music. Available for every DAW via AAX, AU or VST3 formats.

An essential snapshot system allows you to store and recall all Elements systems, archiving them offline or to your computer. Paired with the snapshot system, a comprehensive and ease-of-use undo system allows for multiple steps of control reset, ideal for mix revisions, and rectifying mistakes.

A powerful control grouping system allows you to combine any number of individual Element processors of the same type and group them together – providing you total control over large groups of instruments.

The 88R EQ includes an insert send and return connection with digital control matrix over insert signal flow positioning.

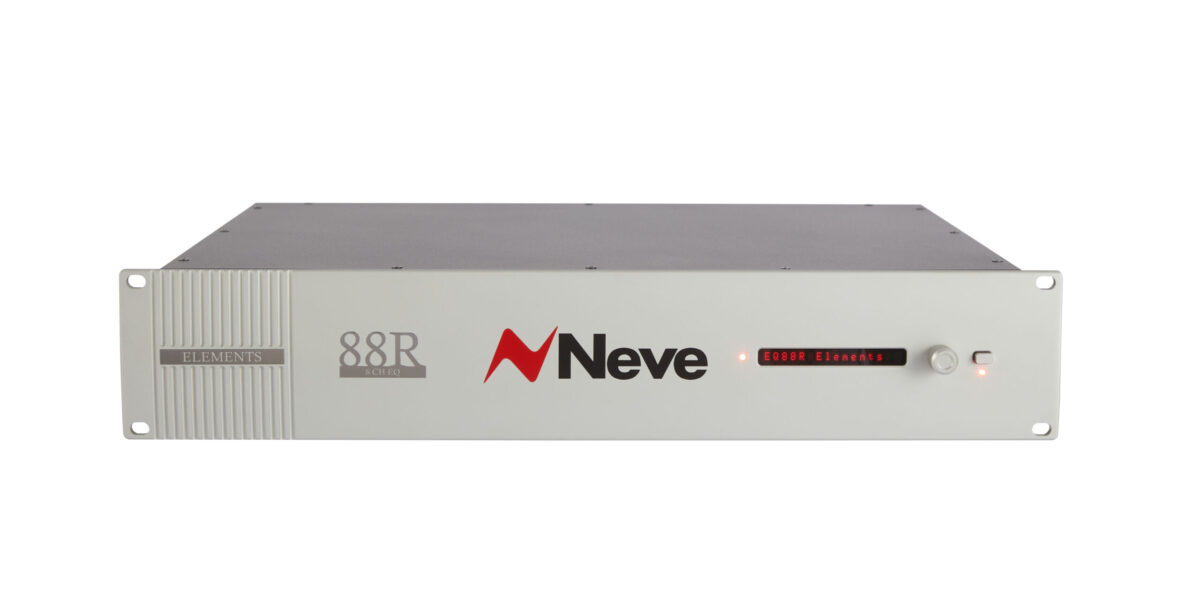

88R EQ gallery

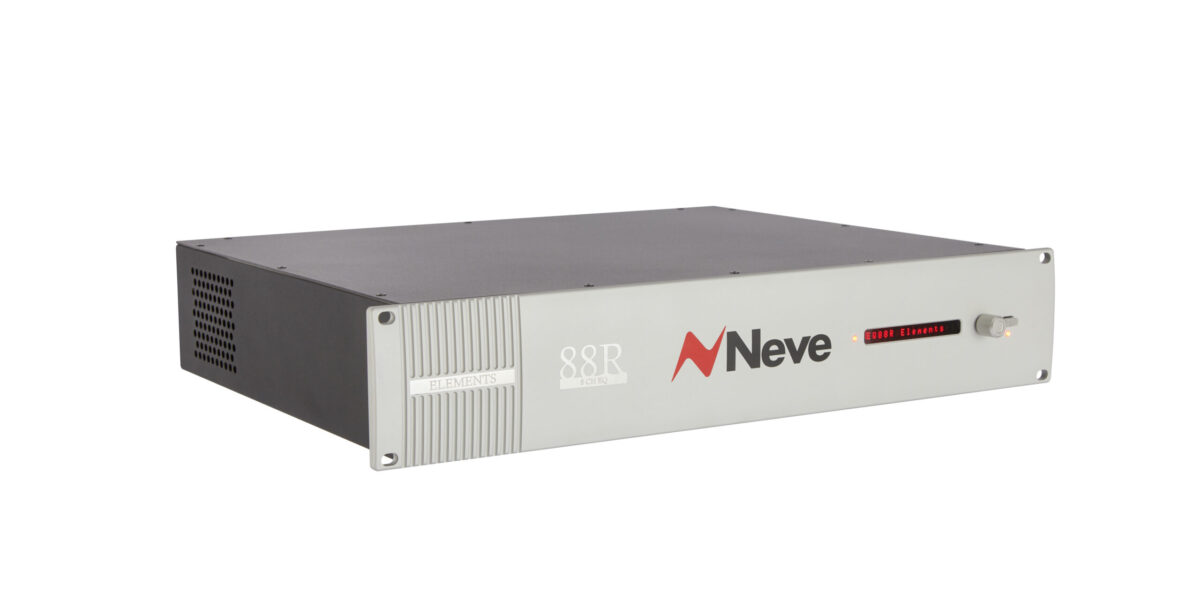

88R EQ Gallery LEFT

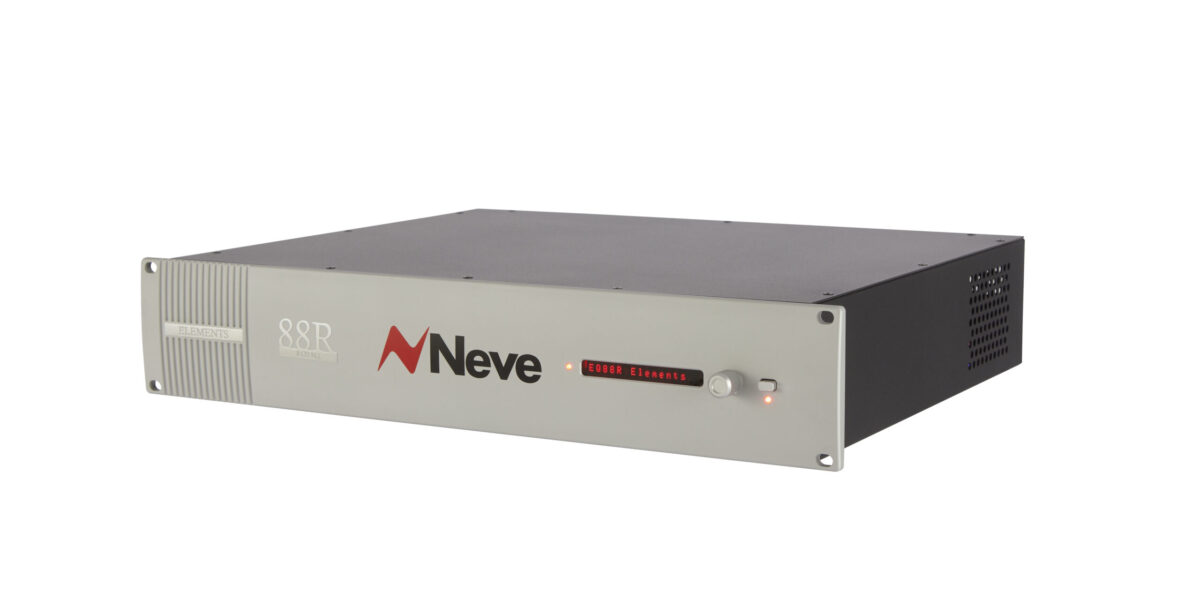

88R EQ Gallery RIGHT

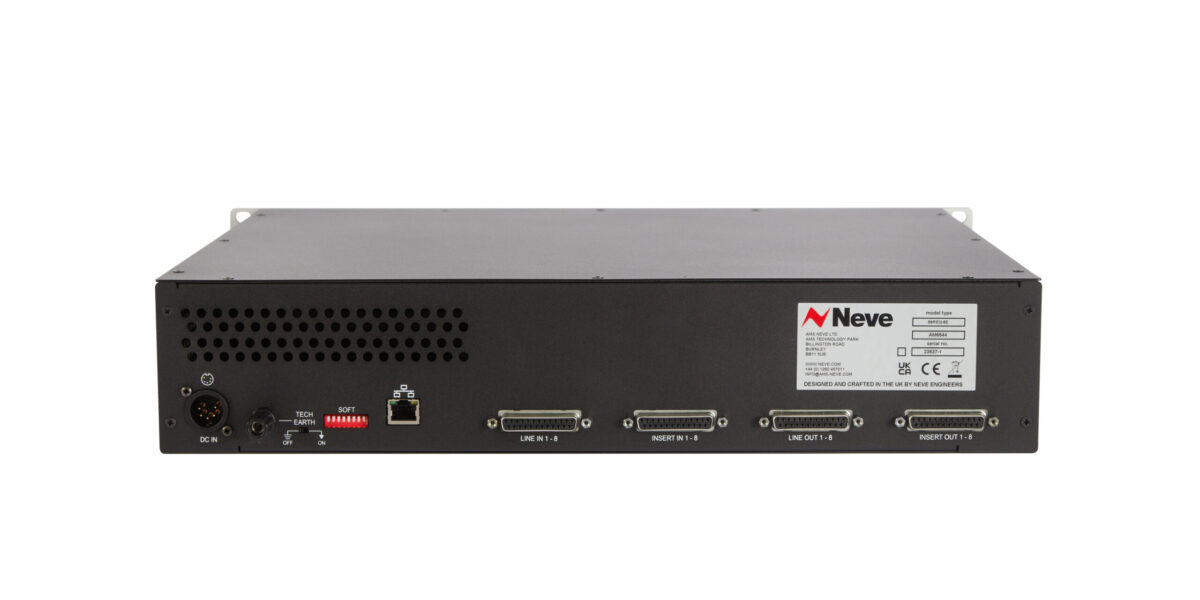

88R EQ Back

More Information and Support

 General Specification

• Four band semi-parametric EQ

• 25 way D-sub connections for line input and line output

• 25 way D-sub connections for insert input and insert output

• Ethernet connection for DHCP/ manually assigned IP communication

EQ Specification

• High Frequency: ±18dB of cut/ boost switchable Bell/ Shelving modes. Continuously swept frequency selection from 3.2kHz to 18kHz.

• High Mid Frequency: ±18dB of cut/ boost for the high-mid EQ band. Continuously adjusts the high-mid frequency from 1.25kHz to 10kHz.

• Low Mid Frequency: ±18dB of cut/ boost for the low-mid EQ band. Continuously adjusts the low-mid frequency from 140Hz to 1.6kHz.

• Low Frequency: ±18dB of cut/boost switchable Bell/Shelving modes. Continuously adjusts the low frequency from 32Hz to 360Hz.

Dimensions

• Width: 483 mm

• Height: 89 mm

• Length: 361 mm
